Low frequency transformers play a crucial role in electrical power distribution and signal processing. They are designed to operate effectively at lower frequencies, typically below 1 kHz, making them essential for various applications in industrial, commercial, and residential settings. This article explores the principles of low frequency transformers, their construction, applications, and the benefits they offer.
Principles of Low Frequency Transformers
A transformer operates on the principle of electromagnetic induction. When an alternating current (AC) flows through the primary winding of a transformer, it creates a magnetic field in the core. This magnetic field induces a voltage in the secondary winding, allowing electrical energy to be transferred from one circuit to another without direct electrical connection.
Key Components
-
Core: The core is usually made from laminated silicon steel to minimize energy losses due to eddy currents. The core material and shape are crucial for efficient magnetic coupling between the windings.
-
Windings: Low frequency transformers have two windings: the primary winding, connected to the input voltage source, and the secondary winding, which delivers the output voltage. The number of turns in each winding determines the voltage transformation ratio.
-
Insulation: Adequate insulation is essential for safety and performance, especially in low frequency transformers that handle higher voltages and currents.
Applications of Low Frequency Transformers
Low frequency transformers are employed in various applications, including:
1. Power Distribution

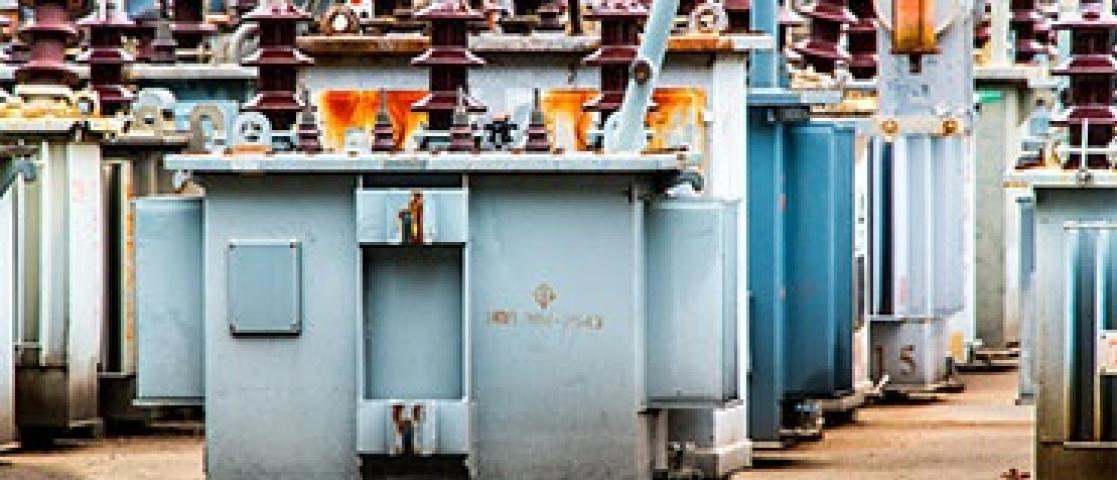

In electrical power systems, low frequency transformers are essential for stepping down high transmission voltages to lower levels suitable for residential and commercial use. They ensure safe and efficient power delivery to end-users.
2. Audio Equipment
Low frequency transformers are widely used in audio applications, such as amplifiers and speakers. They help match impedance between different audio components, improving sound quality and preventing distortion.
3. Isolation
Low frequency transformers provide electrical isolation between circuits, which is critical for safety and noise reduction in sensitive electronic devices. This isolation helps protect against voltage spikes and reduces the risk of electric shock.
4. Industrial Machinery
In industrial settings, low frequency transformers are used to power heavy machinery, motors, and control systems. They are designed to handle high currents and voltages, ensuring reliable operation in demanding environments.
5. Renewable Energy Systems

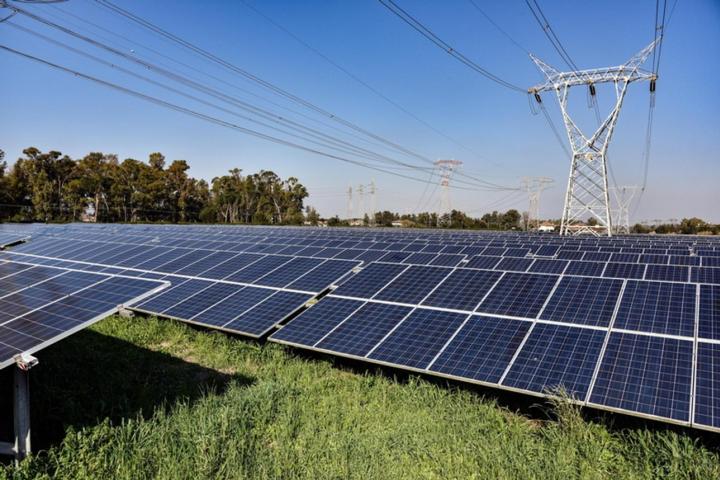

Low frequency transformers play a vital role in renewable energy systems, such as wind and solar power. They help convert generated electricity to usable voltages for integration into the power grid.
Benefits of Low Frequency Transformers
Low frequency transformers offer several advantages:
1. Efficiency
These transformers are designed for high efficiency, minimizing energy losses during power transfer. Efficient operation is crucial in applications where energy costs are a concern.
2. Reliability
Low frequency transformers are known for their durability and reliability. They are built to withstand harsh operating conditions, making them suitable for industrial and outdoor applications.
3. Versatility
With various designs and configurations available, low frequency transformers can be tailored to meet specific application requirements. This versatility allows them to be used in a wide range of industries.
4. Safety
The electrical isolation provided by low frequency transformers enhances safety by reducing the risk of electric shock and protecting sensitive equipment from voltage surges.
5. Improved Performance
In audio and signal processing applications, low frequency transformers enhance overall performance by providing impedance matching and reducing distortion, leading to better sound quality.
Considerations When Selecting Low Frequency Transformers
When choosing a low frequency transformer, several factors should be considered:
1. Voltage and Current Ratings
Ensure that the transformer can handle the required voltage and current levels for your application. Exceeding these ratings can lead to overheating and failure.
2. Frequency Range
Verify that the transformer is designed for operation within the desired frequency range. Low frequency transformers are specifically optimized for frequencies below 1 kHz.
3. Efficiency
Look for transformers with high efficiency ratings to minimize energy losses and operating costs.
4. Size and Weight
Consider the physical dimensions and weight of the transformer, especially in applications where space is limited.
5. Regulatory Compliance
Ensure that the transformer complies with relevant industry standards and regulations, particularly in safety and performance.
Conclusion
Low frequency transformers are vital components in various electrical and electronic systems, providing efficient power transfer, electrical isolation, and impedance matching. Their robust design and reliability make them suitable for diverse applications, from power distribution to audio equipment. Understanding their principles, applications, and benefits can help engineers and designers make informed decisions when selecting transformers for their specific needs. As technology advances and the demand for efficient power solutions increases, low frequency transformers will continue to play a crucial role in modern electrical systems.
