Types of Rack Mount UPS Systems

There are several types of rack mount uninterruptible power supply systems available in the market to suit different power needs and budgets. The main types are:

Line-interactive UPS systems provide basic power protection from minor power fluctuations. They have bulkier and heavier components compared to online UPS systems, but offer a more affordable solution. They provide backup power for a limited time ranging from 5-30 minutes, depending on the capacity.

Online or double-conversion Rack Mount UPS systems offer the highest level of power protection by continuously conditioning utility power and provide battery backup power immediately in case of failures. They feature smaller and lighter components since the incoming power is processed by the UPS electronics before it reaches the load. This offers complete protection from all power issues but these systems are more expensive than line-interactive UPS.

Standby UPS systems only provide backup power during complete power failures by automatically switching over to battery power. They don't provide continuous conditioning of utility power like online UPS so they may not protect sensitive equipment from minor power issues. Standby UPS are the most economical choice but offer the lowest level of power protection.

Capacity and Battery Options

The capacity of a rack mount uninterruptible power supply system system is typically measured in Volt-Amperes (VA). Larger capacities can power more equipment for longer backup run times. It's important to choose a capacity that matches or exceeds the total power needs of all the equipment being backed up to ensure adequate protection.

Most rack mount uninterruptible power supply systems use lead-acid batteries that have service life of 3-5 years depending on usage. Lithium-ion batteries offer higher power density and last up to 10 years before needing replacement. Additionalhot-swappable battery packs can be added to existing Rack Mount UPS systems to increase runtime during outages. External battery cabinets further boost capacity.

Physical Attributes and Mounting Options

Rack mount uninterruptible power supply system units range from 1U to 6U in height to fit standard 19-inch server racks. Deeper chassis accommodate more batteries for longer runtimes.

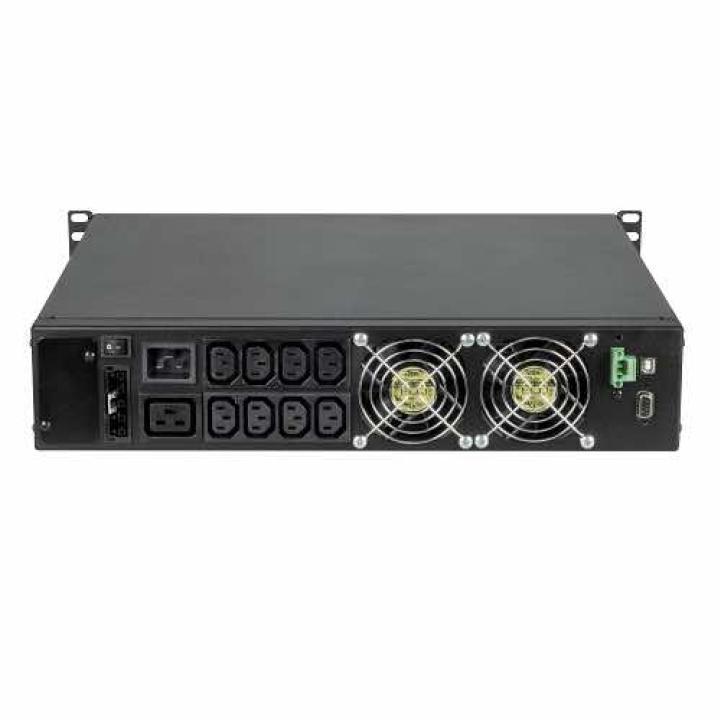

The front should have an LCD display and interface buttons to view system status, settings and alarms. Rear connections include inputs, outputs, and battery connections.

universal sliding rails allow tool-less installation and removal of a UPS unit. The rails attach to the rack and slide the UPS in and out for easy access without needing to disconnect power or network cords. Fixed rails or no rails are alternative mounting options.

Network Management and Monitoring

Network card ports or built-in network management enable remote monitoring and control of rack mount uninterruptible power supply system systems over the LAN/WAN from any location. Features like email notifications, logging and software agents provide detailed insights into system health and events.

Integrations with monitoring platforms like Nagios, Zabbix and PRTG help correlate UPS status with other IT infrastructure for end-to-end visibility. APIs also allow building custom interfaces and automations.

Choosing the Right Rack Mount UPS

Key factors to consider when choosing a rack mount UPS include power needs, physical constraints, connectivity requirements, budget and level of protection needed. Line-interactive UPS provide basic protection at lower cost while double-conversion online UPS deliver complete isolation from all power issues but cost more. Choosing the right balance based on specific needs leads to optimal power protection and reliability for network equipment and servers in the data center. Proper sizing, mounting and network manageability further enhance UPS functionality.
